Locating pins
Locating pins, also known as bond pins, play a crucial role in various industries, from aerospace to utilities and beyond. We specialize in the manufacture and refurbishment of these essential components, offering solutions that adhere to the highest standards of quality and performance. All corresponding steel, carbide, or plastic bushings and sleeves can be found under the bushings link.
Our expertise in precision engineering guarantees that our bond pins provide the reliability and durability that your projects demand. We also offer rapid prototyping and support for any custom locating pin or bond pin needs.

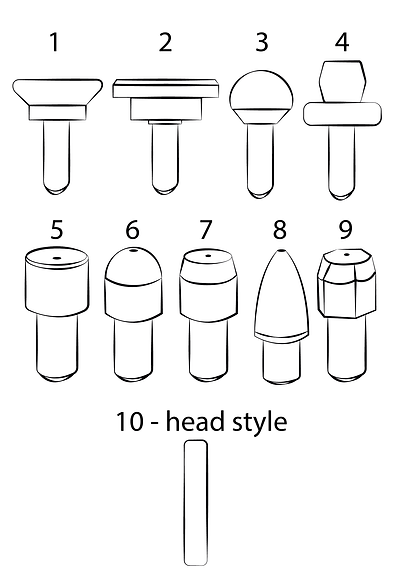

Tapered Head
•Max overall length 4”
•Max OD 20mm or ¾”
Diamond Head
•Max overall length 4”
•Max OD 20mm or ¾”
Hole Liners
•Max overall length 4”
•Max OD 20mm or ¾”
Cone Head
•Max overall length 4”
•Max OD 20mm or ¾”
Round Head
•Max overall length 4”
•Max OD 20mm or ¾”
Head style | Image | Max overall length | Max OD | Order |
|---|---|---|---|---|
Hole Liners | 4” | 20mm or ¾”
| 500pcs minimun | |
Cone Head | 4” | 20mm or ¾”
| 500pcs minimun | |
Diamond Head | 4” | 20mm or ¾”
| 500pcs minimun | |
Round Head | 4” | 20mm or ¾” | 500pcs minimun | |
Tapered Head | 4” | 20mm or ¾” | 500pcs minimun |
